4 Button Replacement Remote Flip Key For GM OHT01060512

4 Button Replacement Remote Flip Key For GM OHT01060512

Regular price $19.55 USD
Regular price Sale price $19.55 USD
Sale Sold out

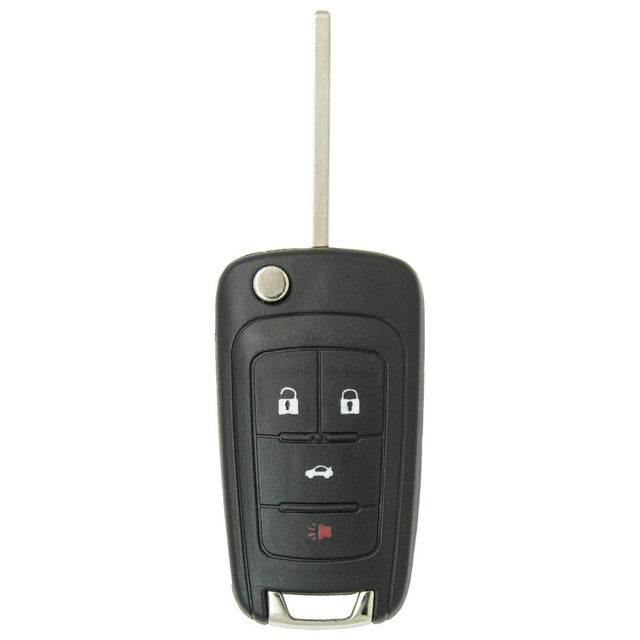

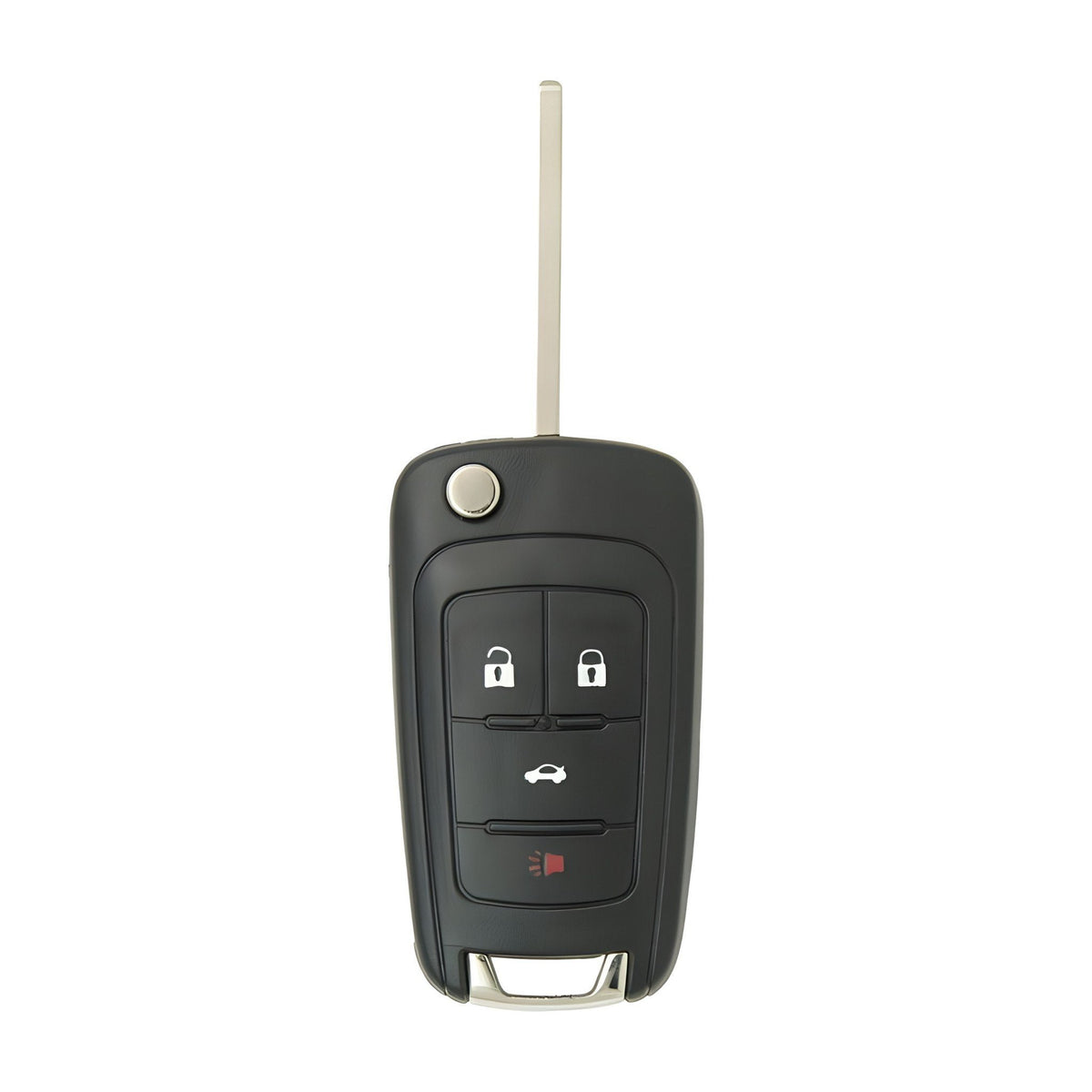

4 Button Replacement Remote Flip Key for GM Vehicles

*Note: 2016 Chevrolet Cruze has 3 possible remote flip keys, please verify the key you need. The other options are 13514135 (vehicles with XL8 update 433 Mhz) and 13588756 (vehicles with XL7 315Mhz)

Onboard program: Yes (except for Canada)

Replacement for:
OHT01060512, OHT01060512, V2T01060512, V2T01060514, AVL-B01T1AC, AVL-B01T2AC
13504200, 13504205, 13585811, 5912555, 5913396

FCC ID:2AOKM-GV4, 2AOKM-GV12
IC:24223-GV4, 24223-GV12
Chip: 46 (New version)
Battery: CR2032

Replaces RK-GM-FP4

This is a non-PEPS flip key for select GM vehicles. They will not work as a substitute for PEPS keys (PEPS keys have "+" sign on the PCB below the battery.)



KEY PROGRAMMING
Please make sure to read through the programming instructions completely before attempting.
You must have one (1) working key that can start the vehicle to perform this procedure.
1. Enter the vehicle and close the driver’s door.
2. Using a working factory key, insert the key into the ignition and turn it to the ON position as far as it will go without starting the vehicle, wait one (3) second, then switch it OFF.
3. Remove the key from the ignition.
4. Insert the new key into the ignition and turn it to the ON position as far as it will go without starting the vehicle.
5. The key is now programmed.
6. Test the key to ensure that it starts the vehicle. If the key did not program, restart the programming procedure from STEP 1. To program additional keys, repeat the entire procedure.
